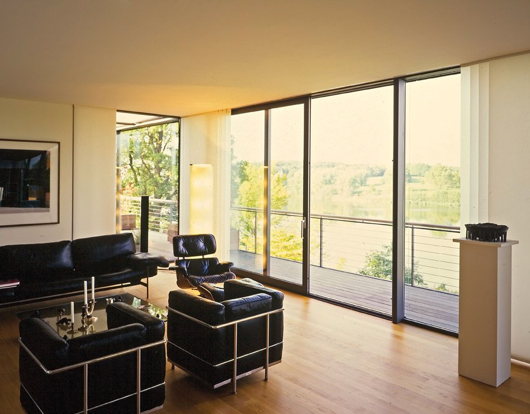

Schüco Sliding and Lift-and-Slide System ASS 50

Thermally insulated sliding and lift-and-slide system with a solid vent frame and minimal face widths.

Features and benefits

1. •Thermal insulation in accordance with DIN EN ISO 10077, Part 1, Uw values                 of 1.9 W/m²K, and a unit size of 2500 mm x 2500 mm, double glazing with a Ug             value of 1.1 W/m²K.


2. •Max. vent weight 400 kg.




3. •Max. vent sizes: 3000 mm wide and 3000mm high.


4. •Schüco e-slide concealed mechatronic drive system can be integrated (optional).


5. •Solid vent frame with minimal face width.


6. •Watertightness up to class 9A in accordance with DIN EN 12208.


7. •Wide range of designs based on single, double and triple track outer frames.


8. •Burglar resistance up to WK2.


1. ASS50.pdf
